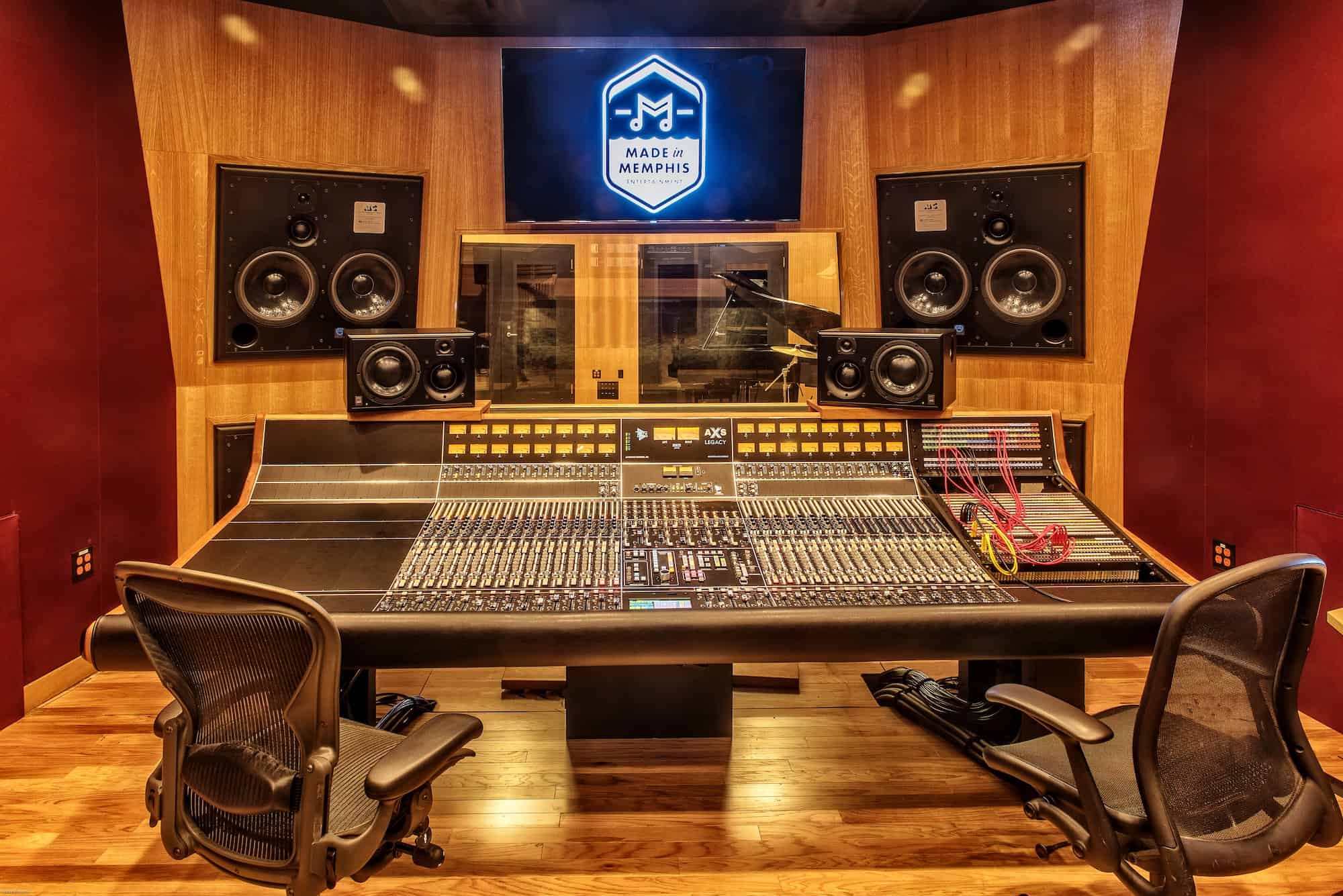

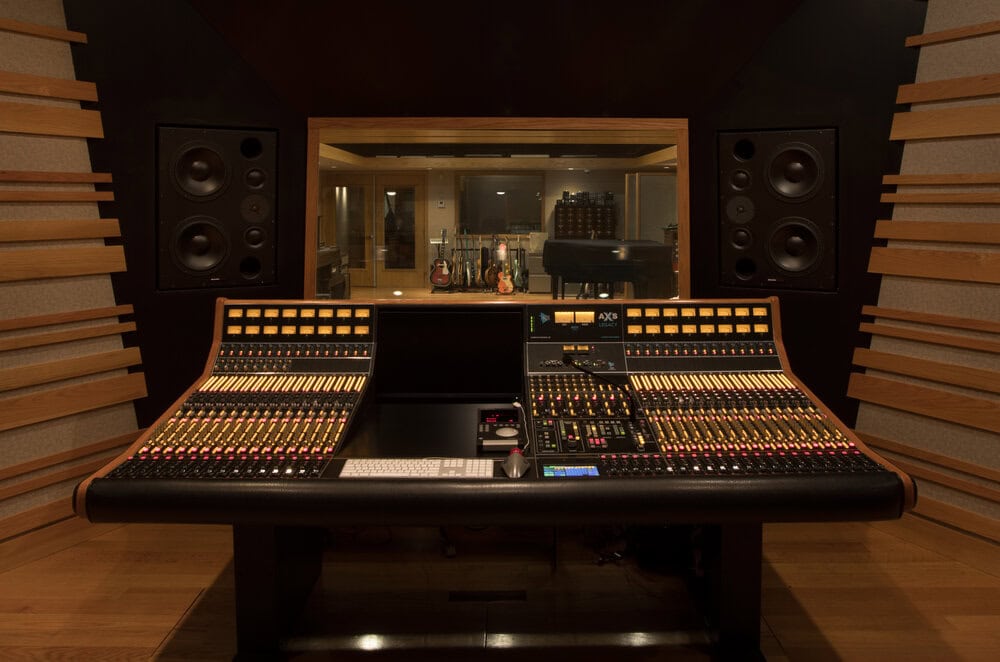

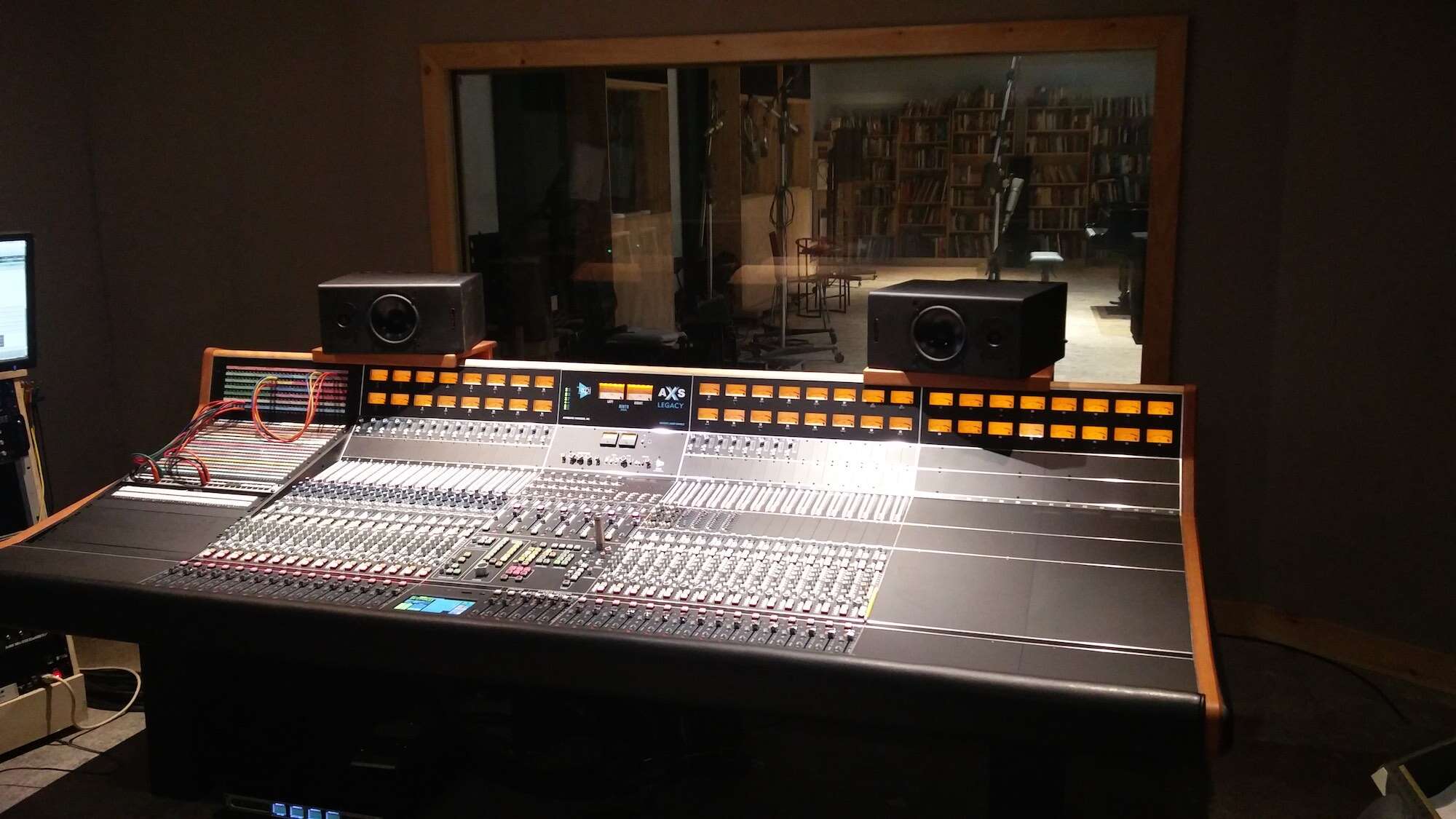

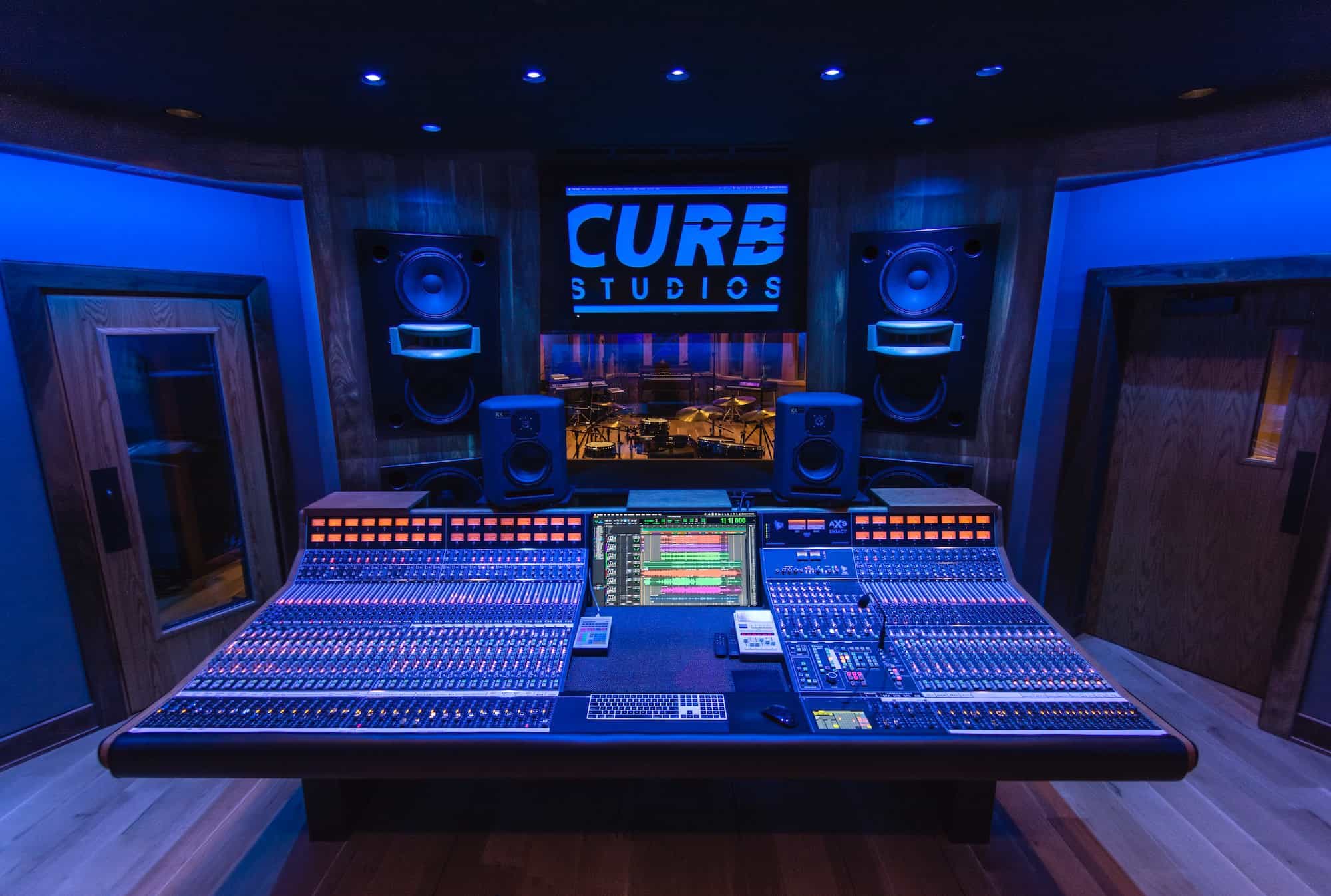

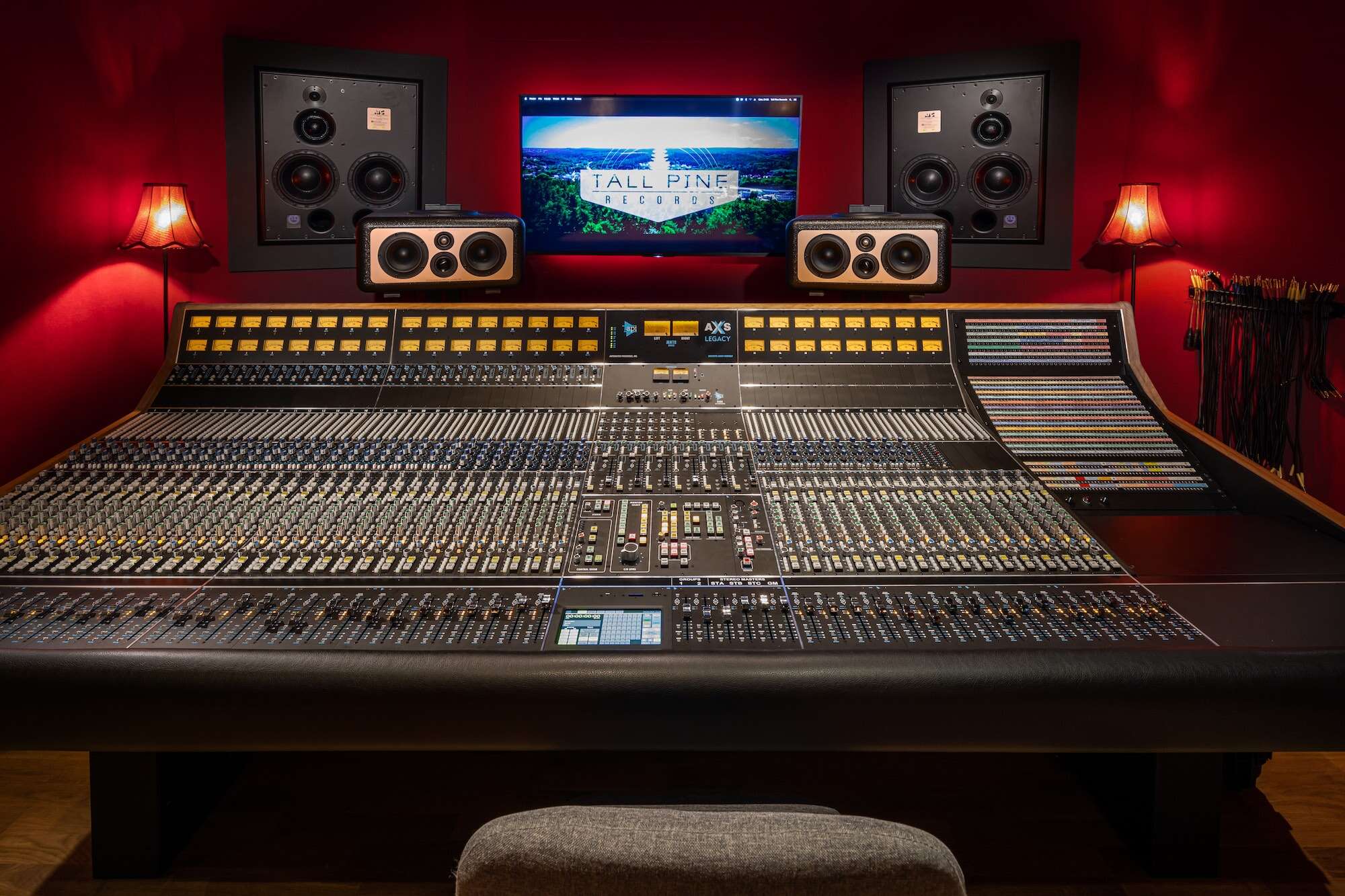

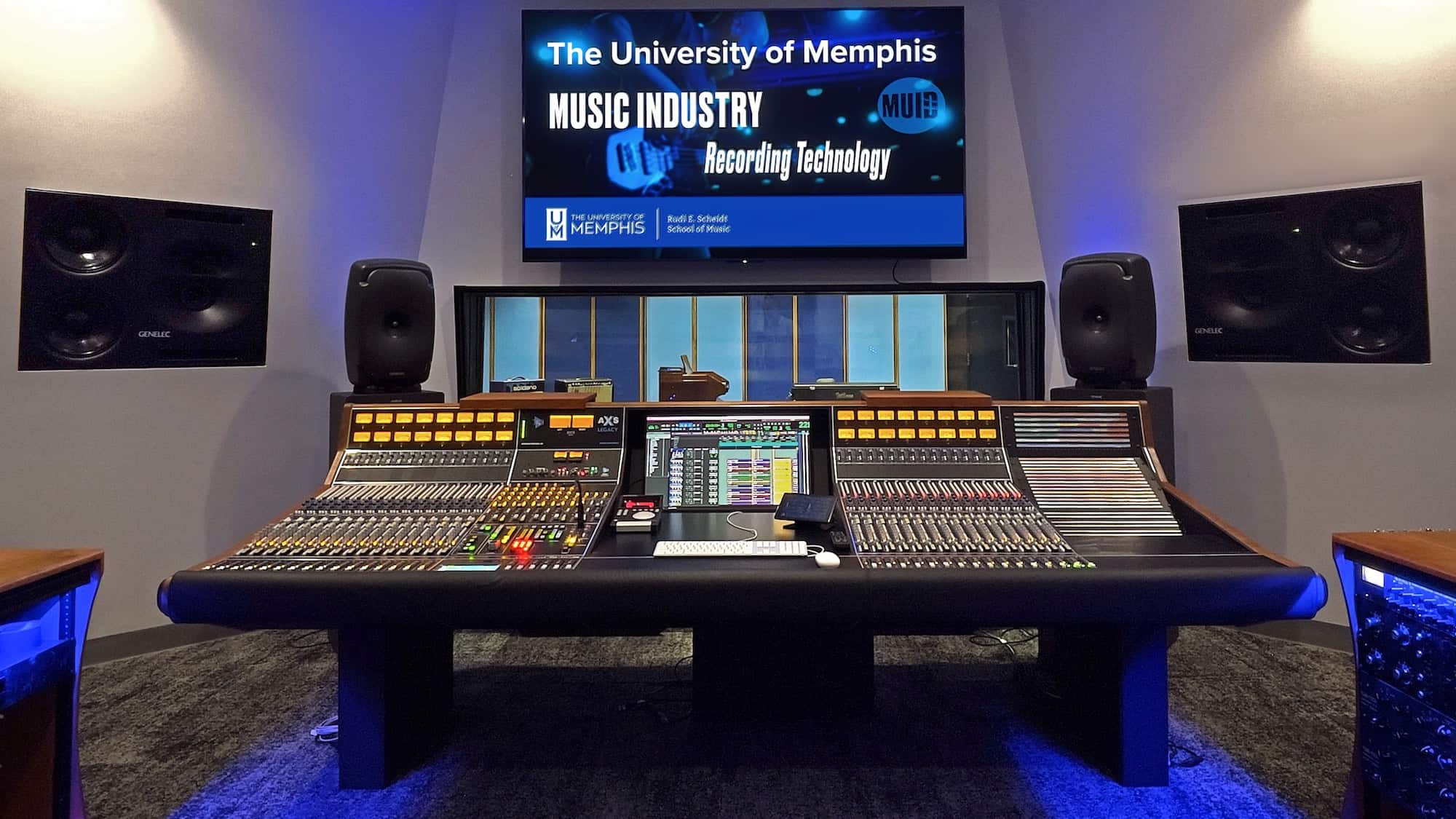

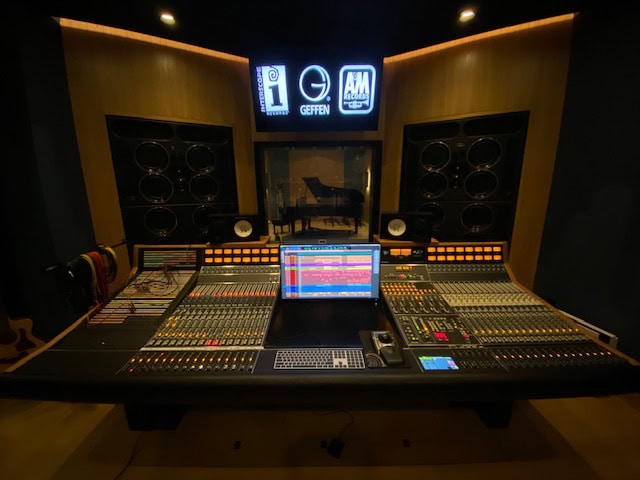

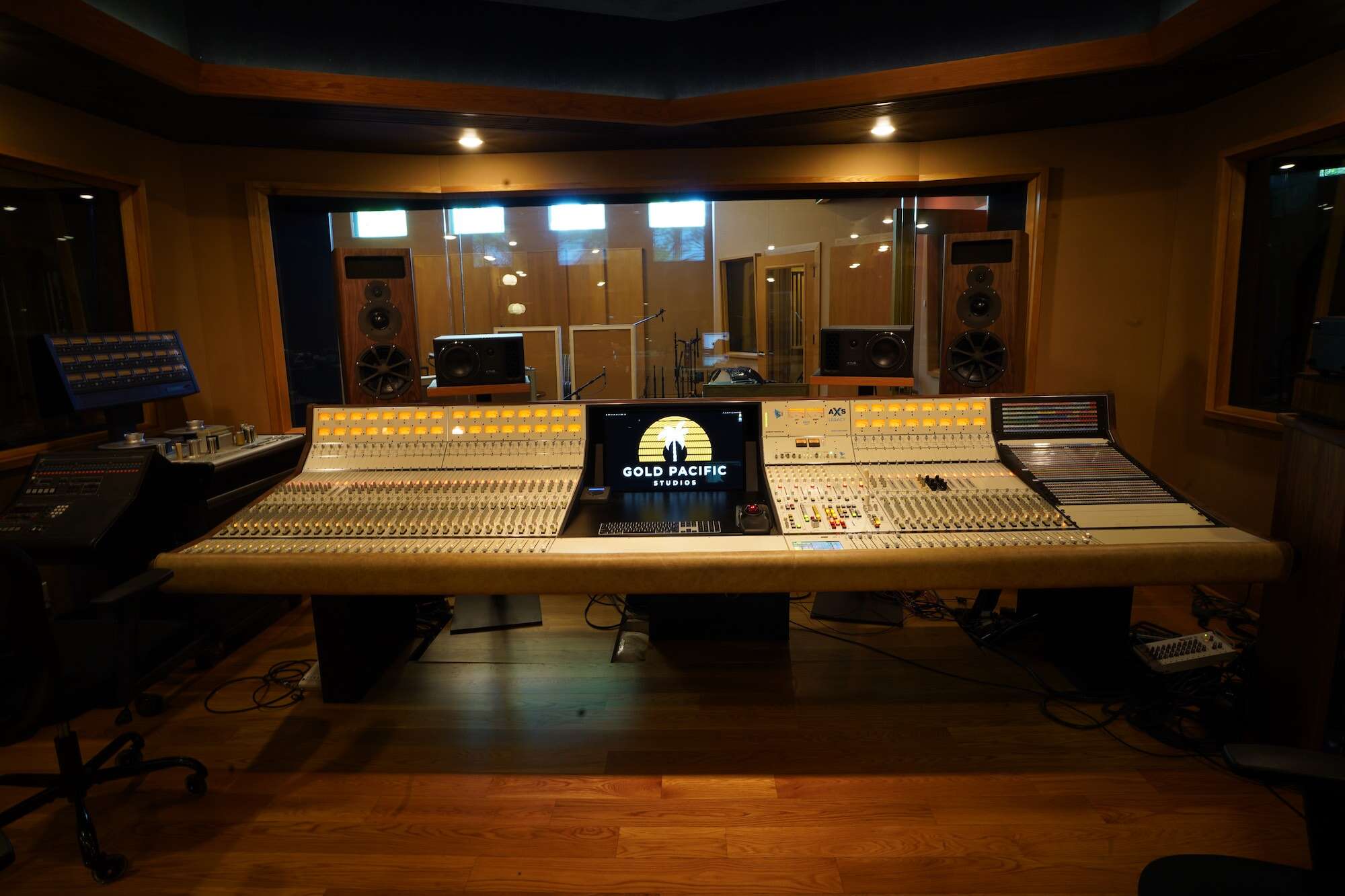

AXS Console

powerful. flexible.

The API AXS Console is a powerhouse of functionality. With both 500- and 200-Series integration, up to 5.1 Surround monitoring, Final Touch Automation^®, an included 2500C compressor/limiter, and up to 80 Channels, it can acommodate almost any workflow.

AXS Console features

From 32 to 80 channels of inputs (in 16 channel buckets)

Fitted with 550A and 560 equalizers

Dual 200-series rows with pre's, compression, gating, filters, and DI's per channel

6 Stereo Echo Returns with Automated Faders

2500C Stereo Bus Compressor Standard

On Board or Remote Patchbay

all AXS Console features

From 32 to 80 Channels (in 16 Channel Buckets)
- Channel Width: 1.5″
- Input Bucket Width: 24″
500 Series Equalizer Compatible
(Fitted with 550A and 560 Equalizers)
Dual 200 Rows on each channel
- 212 Mic Pre
- 225 Compressor
- 235 Noise Gate
- 215 Filter
- 205 Direct Input
Dual Input (100mm Main Fader, 45mm 2nd Fader)
Motorized Fader and Mute Automation
Buses and Routing
- 24 Main Bus
- 12 Aux Sends
- 3 Stereo Bus
Complete Center Section including 5.1 Surround Monitoring
6 Stereo Echo Returns with Automated Faders provides Extensive Routing features for Parallel Compression and Stem Mixing.
2500C Stereo Bus Compressor Standard
On Board or Remote Patchbay (32 and 48 Channel can be On Board, 64 or more Channels Remote only)
Optional DAW/Producer’s Desk
For further customization, we invite you to contact API.
As with all API products, The AXS Console offers the same exacting craftsmanship featured on all API Large Format Consoles, including a unique 5 year warranty on all parts.

Final Touch Automation^®

Final Touch Automation combines system reliability, user flexibility and operational simplicity and offers a host of features found only in the most expensive and sophisticated console automation systems typically costing many times more. Consoles can be factory-fitted with Final Touch Automation prior to delivery, and existing AXS consoles can be retrofitted with Final Touch Automation
